Especificaciones
Las especificaciones pueden variar según talla, disponibilidad de componentes o cambios del fabricante sin previo aviso.
| Cuadro | M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel |
|---|---|
| Abrazadera del sillín | Alloy, 38.6mm |
| Horquilla | RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel |

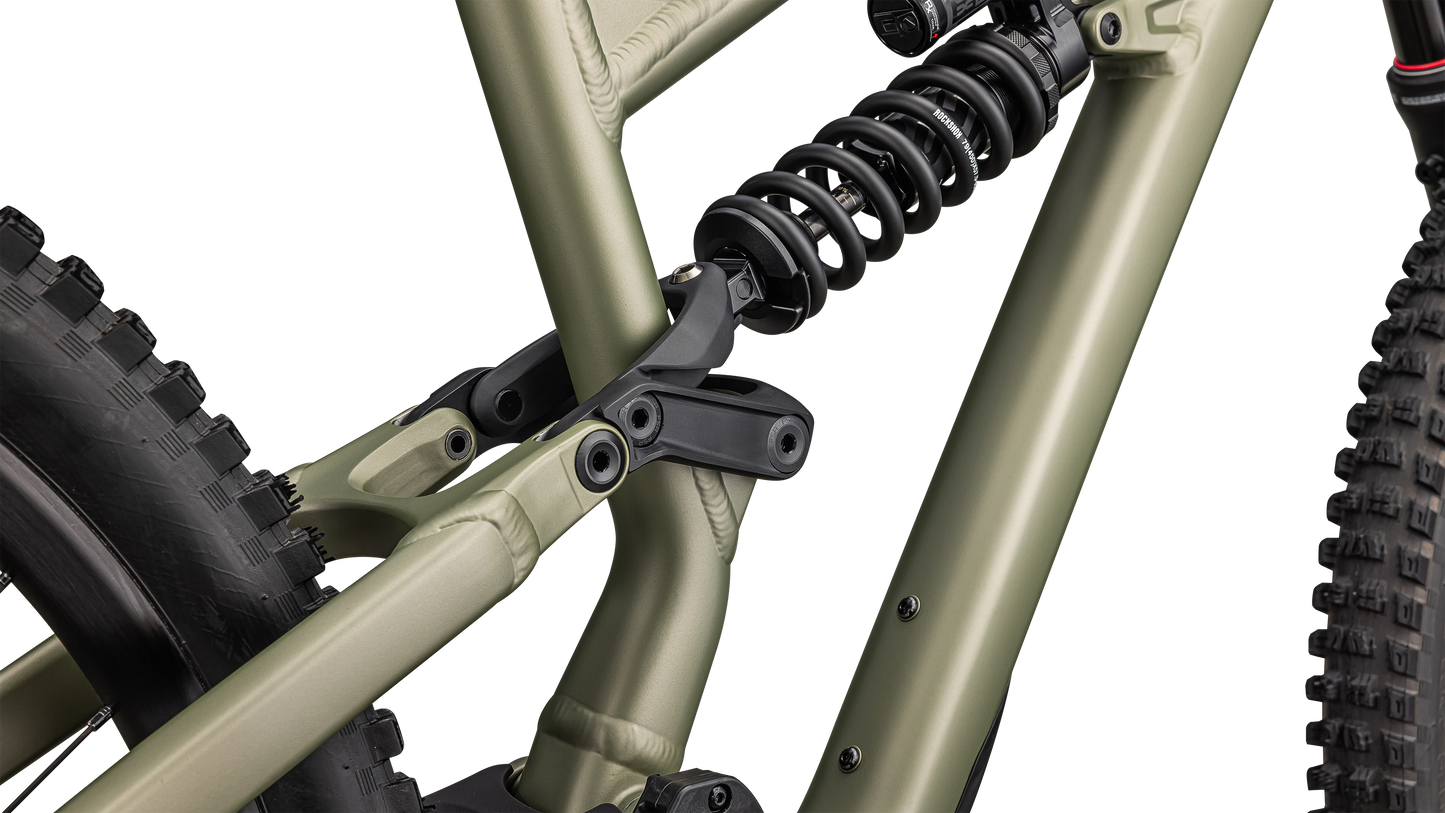

| Amortiguador trasero | RockShox Super Deluxe Select Coil, external rebound adjust, hydraulic bottom out, 230x62.5mm, S2: 400lbs, S3: 450lbs, S4: 500lbs, S5: 550lbs |
| Freno delantero | SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm |
| Freno trasero | SRAM Maven Bronze, 4-piston caliper, hydraulic disc |
| Cambio trasero | SRAM GX DH, 7-speed, trigger |
| Mandos | SRAM GX DH, trigger, 7-speed |
| Cassette | SRAM GX DH, 7-speed, 11-25t |
| Cadena | SRAM PC1110 w/ Powerlink™ |
| Platos y bielas | SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm |
| Caja de pedalier | SRAM DUB Threaded Wide |
| Llantas | Roval Alloy DH, 28mm internal width, tubeless ready. Front: 29", 28H, Rear: 27.5", 32H |
| Buje delantero | Alloy, sealed cartridge bearings, 20x110mm, 28h |
| Buje trasero | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Radios | DT Swiss Industry |
| Neumático delantero | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Neumático trasero | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3" |
| Cámaras | Standard, Presta valve |
| Manillar | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S2: 780mm, S3-S5: 800mm |
| Potencia | Descendant 35mm Direct Mount Stem, 50mm length |
| Puños | Deity Lockjaw |
| Sillín | Body Geometry Henge DH, hollow Cro-Mo rails, 130mm |
| Tija del sillín | Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm |
| Peso | 17.18kg (37 lb, 14 oz) |
