Especificaciones
Las especificaciones pueden variar según talla, disponibilidad de componentes o cambios del fabricante sin previo aviso.
| Cuadro | M5 Alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel |
|---|---|
| Abrazadera del sillín | Alloy, 38.6mm |
| SWAT | SWAT internal downtube storage |
| Horquilla | FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel |

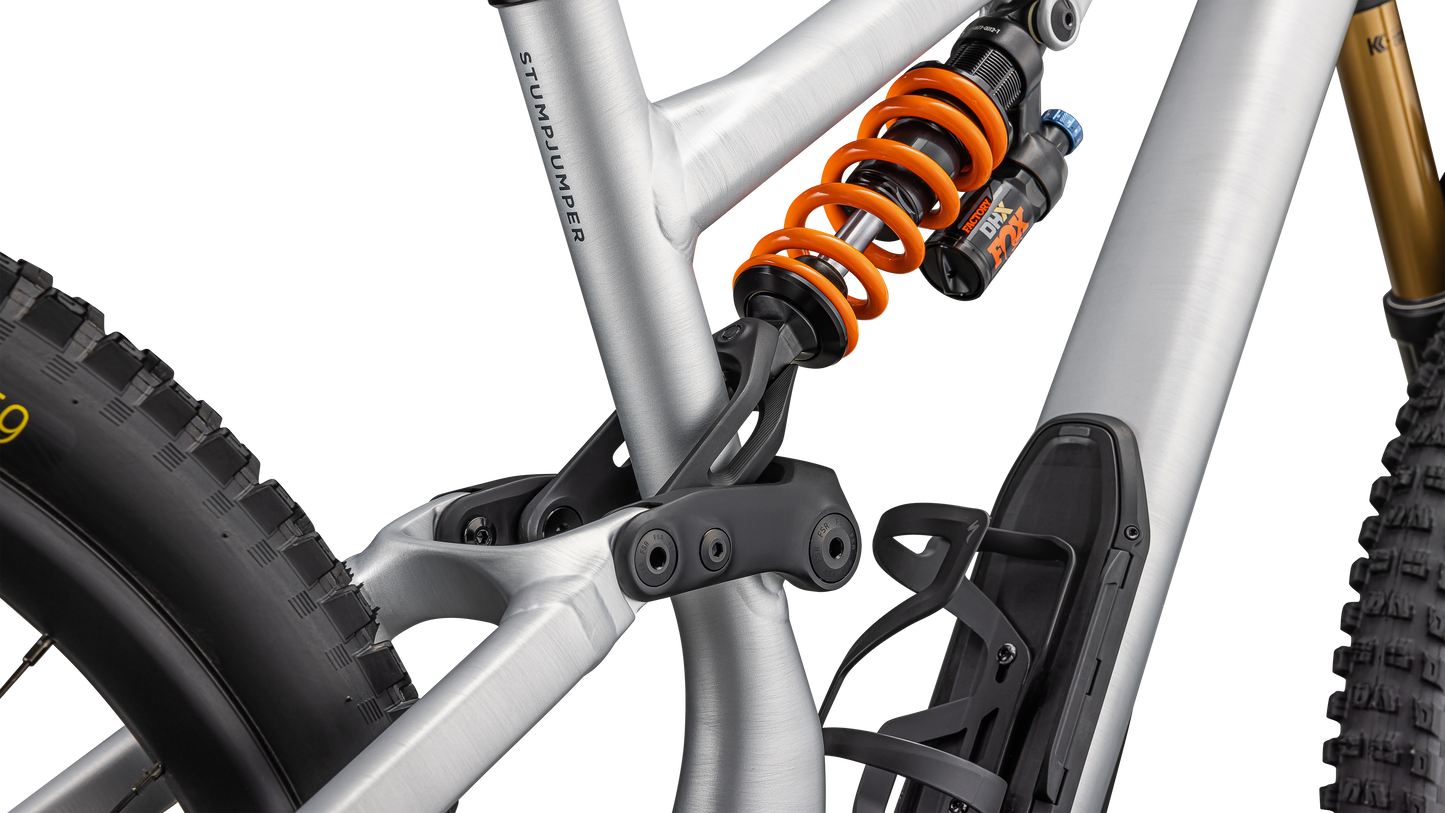

| Amortiguador trasero | FOX DHX Factory, Ride Dynamics Trail Tune, 210x55mm, S2: 400lbs, S3: 450lbs, S4: 500bs, S5: 550lbs, S6: 600lbs |
| Freno delantero | TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm |
| Freno trasero | TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm |
| Cambio trasero | Shimano SLX, M7100, SGS, 12-speed |
| Mandos | Shimano SLX, M7100, 12spd |
| Cassette | Shimano SLX, CS-M7100, 12-speed, 10-51t |
| Cadena | Shimano SLX, M7100, 12-speed |
| Platos y bielas | Shimano SLX, M7120, 32T ring, 55mm chainline, S2-S3:165mm, S4-S6: 170mm |
| Caja de pedalier | Shimano, BB-MT801, Threaded |
| Llantas | Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5 |
| Buje delantero | DT Swiss 370, 15x110mm, 28h |
| Buje trasero | DT Swiss 370, 12x148mm, 32h |
| Radios | Sapim Force |
| Neumático delantero | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Neumático trasero | Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3" |
| Cámaras | Standard, Presta valve |
| Manillar | Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise: S3-S6: 38mm rise |
| Potencia | Deity, 35mm clamp, 35mm length |
| Puños | Deity, Knuckleduster, Black |
| Sillín | Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm |
| Tija del sillín | PNW Loam OE Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm |
| Peso | 16.90 kg (37 lb, 4.1 oz) |
