Las especificaciones pueden variar según talla, disponibilidad de componentes o cambios del fabricante sin previo aviso.
| Motor y batería |
|---|
| Motor | Bosch Performance Line CX38 800Wh |
|---|
| Batería | Bosch PowerTube 800 |
|---|
| Capacidad de batería (Wh) | 800 |
|---|
| Display | Bosch Purion 200 |
|---|
| Cuadro y suspensión |
|---|

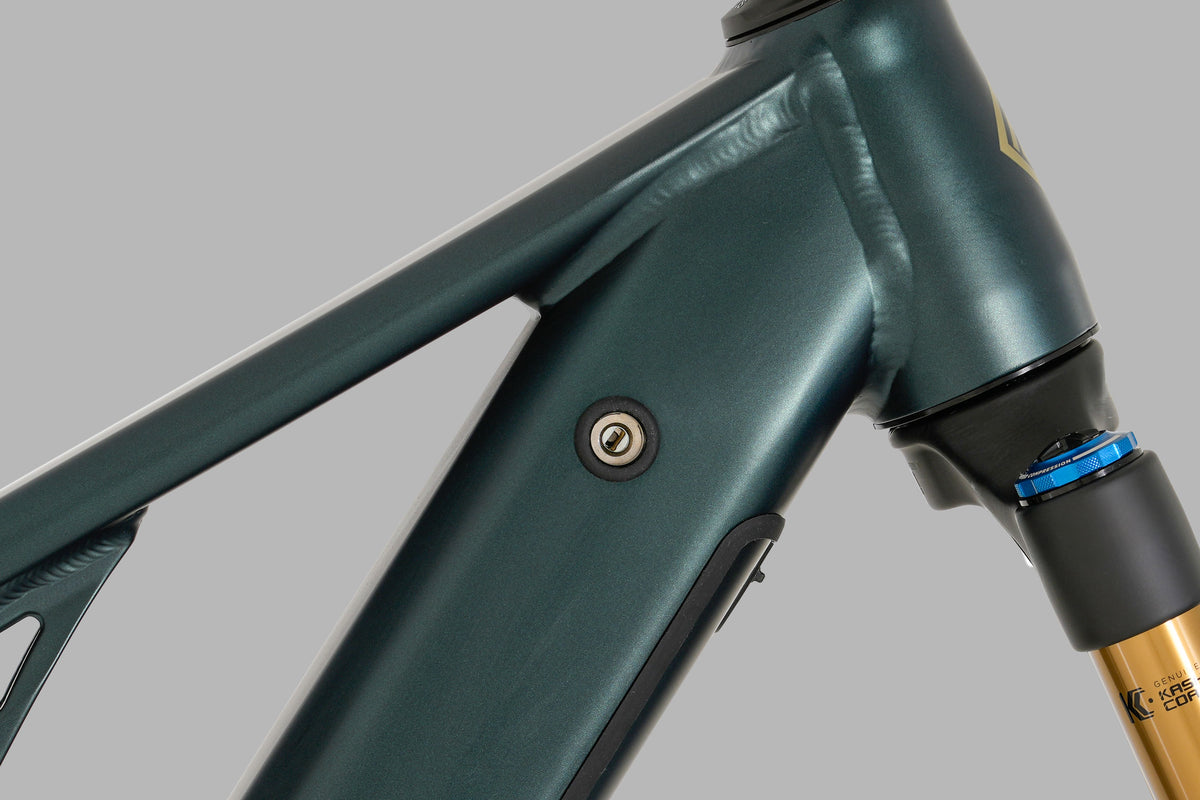

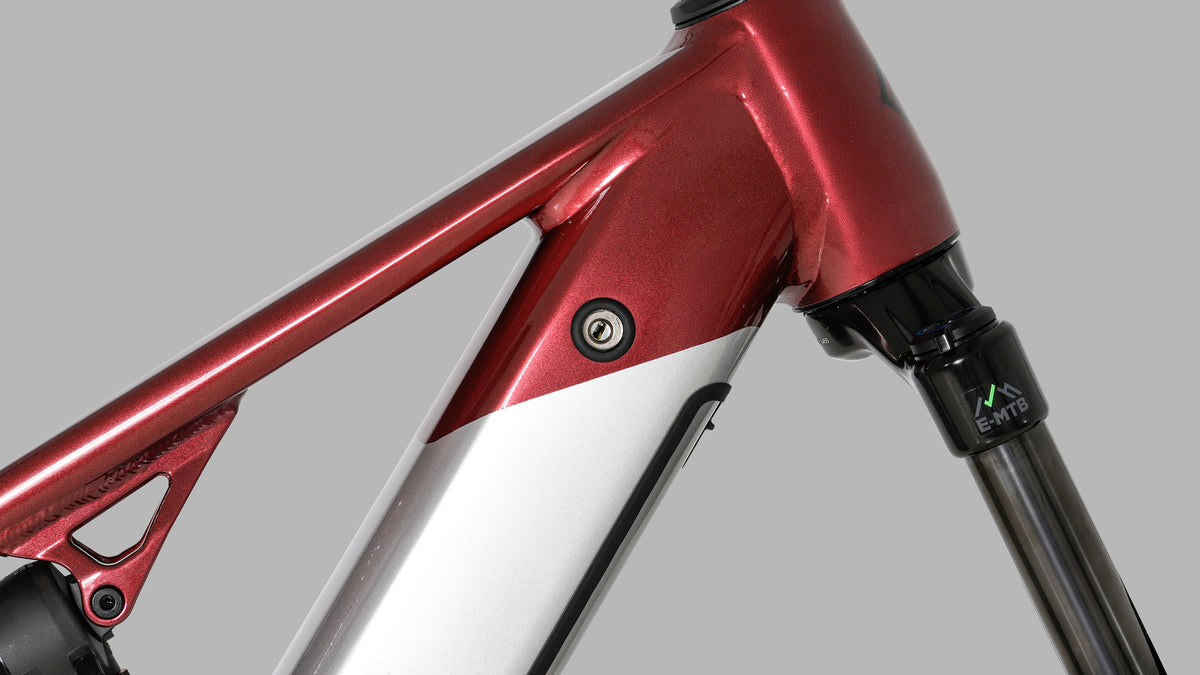

| Cuadro | Full Integratted Battery, Aluminium 6061, 12x148 Boost, Horst Link 4, Wheel travel: 160 mm |
|---|
| Horquilla | FOX 36 Float Performance E-Bike Optimized, 160mm Travel, Grip, 3 Positions, QR Axle 15x110, 1.5 Tapered, 68HT, 44mm Offset, Matte Blk |
|---|
| Recorrido horquilla (mm) | 160 |
|---|
| Amortiguador | FOX Float Performance, 230x60 mm, Evol LV, 2 Position |
|---|
| Transmisión |
|---|
| Cambio trasero | Shimano XT M8100, Shadow Plus 12-Speed |
|---|
| Mandos | Shimano XT 8100, 12-Speed |
|---|
| Velocidades | 12 |
|---|
| Bielas y platos | FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm |
|---|
| Cassette | Shimano XT M8100, 10-51T |
|---|
| Frenos |
|---|
| Frenos | Shimano XT M8220, Hydraulic Disc 4-Piston RT-MT800 203mm |
|---|
| Disco delantero | 203 mm |
|---|
| Ruedas |
|---|
| Juego de ruedas | DT Swiss HXC 1900 SPLINE, 30mm Tubeless ready Aluminium rim // Maxxis 29 x 2.4 Minion DHR II / 29 x 2.5 Assegai |
|---|
| Llantas | DT Swiss HXC 1900 SPLINE, 30mm Tubeless ready Aluminium rim |
|---|
| Bujes | DT Swiss 370 Ratchet LN 18, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST |
|---|
| Neumáticos | Maxxis 29 x 2.4 Minion DHR II / 29 x 2.5 Assegai |
|---|
| Cockpit |
|---|
| Manillar | Megamo Alloy Butted 31,8 x 780 mm, 12 mm Rise, 6º Back Sweep |
|---|
| Potencia | Satori New Ursa |
|---|
| Puños | Megamo |
|---|
| Sillín | Fizik Terra Aidon X5 |
|---|
| Tija | Megamo Dropper-post |
|---|
Geometría
| mm / grados | S | M | L |
|---|
| Stack | 620 | 629 | 647 |
|---|
| Reach | 435 | 453 | 484 |
|---|
| Tubo sillín | 410 | 435 | 470 |
|---|
| Ángulo sillín | 76 | 76 | 76 |
|---|
| Tubo superior | 590 | 610 | 645 |
|---|
| Tubo dirección | 110 | 120 | 140 |
|---|
| Ángulo dirección | 65 | 65 | 65 |
|---|
| Vainas | 460 | 460 | 460 |
|---|
| Distancia entre ejes | 1219 | 1241 | 1280 |
|---|
