Las especificaciones pueden variar según talla, disponibilidad de componentes o cambios del fabricante sin previo aviso.
| Cuadro y suspensión |
|---|

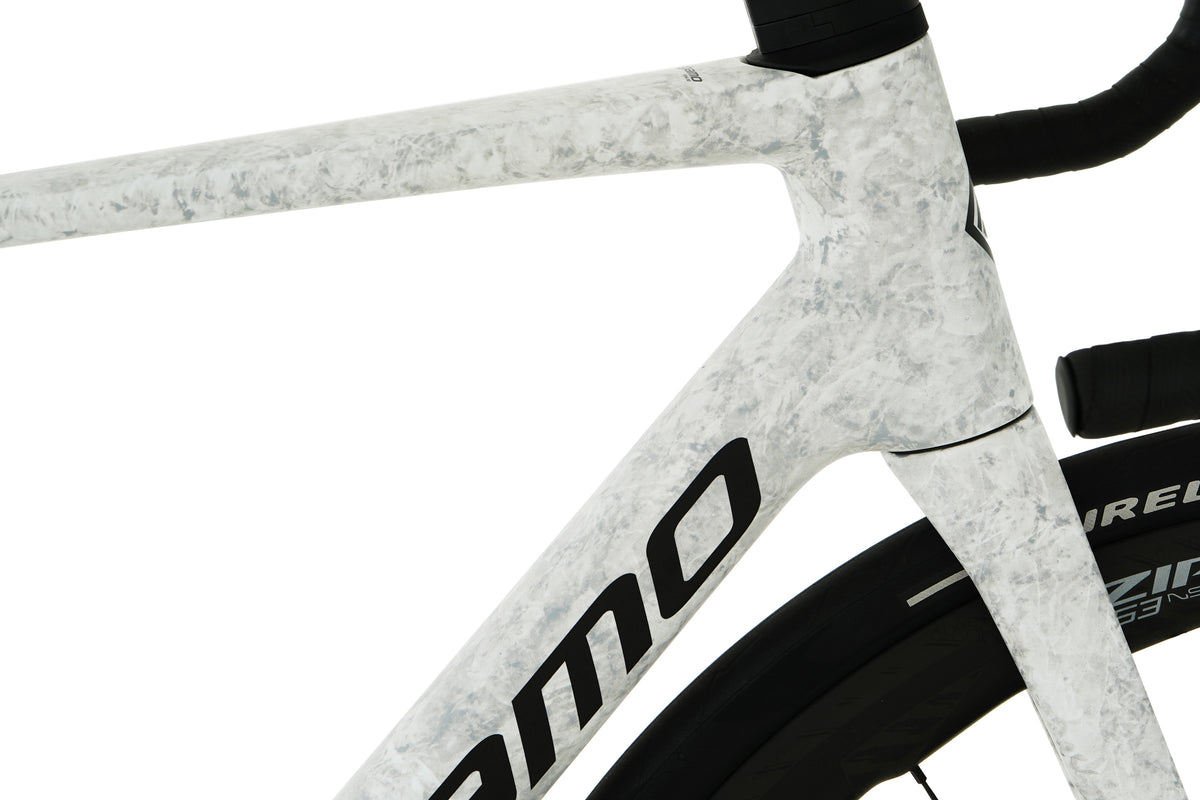

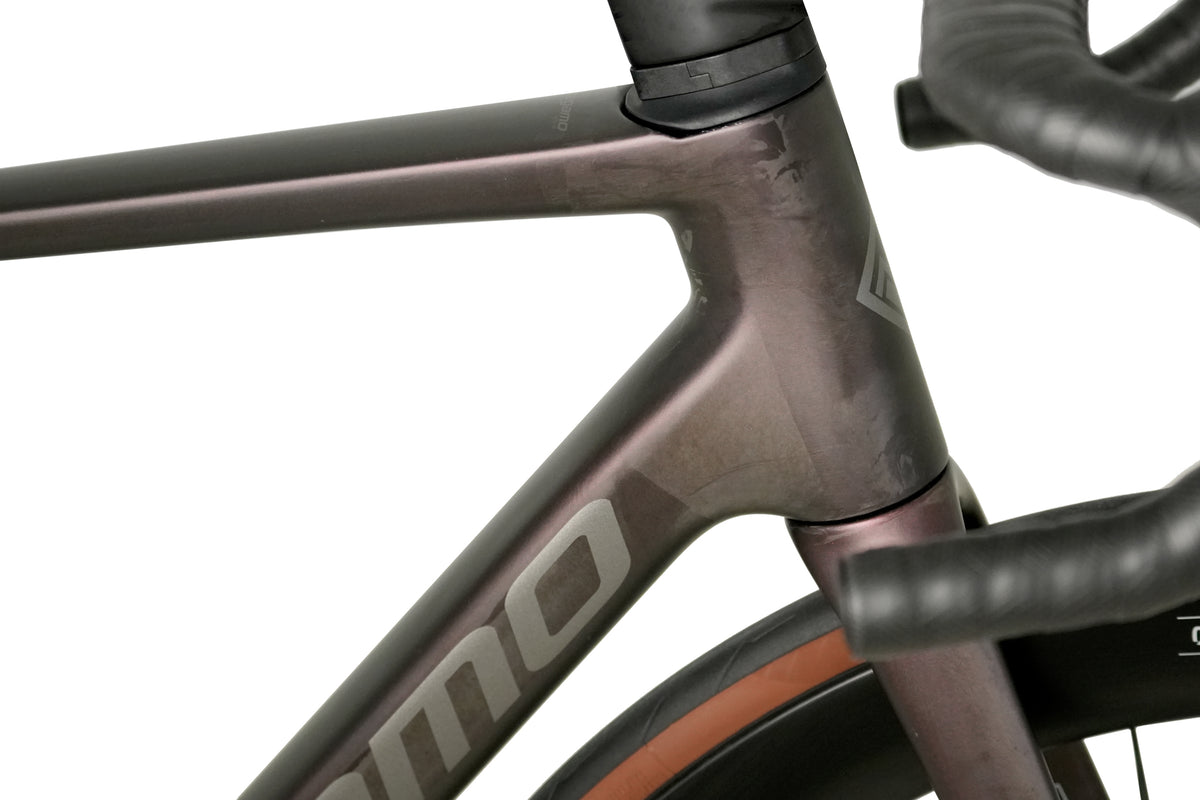

| Cuadro | Carbon Advanced Composite Super Light Race Frame, Full Internal Cable Routing, Flat mount disc 12x142 |
|---|
| Horquilla | Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100 |
|---|
| Transmisión |
|---|
| Cambio trasero | Shimano 105 Di2 R7150, Shadow 12-Speed |
|---|
| Desviador | Shimano 105 Di2 R7150, 2x12-Speed |
|---|
| Mandos | Shimano 105 Di2 R7170 |
|---|
| Velocidades | 24 |
|---|
| Bielas y platos | Shimano 105 R7100 Chainring 52-36T 2x12-Speed |
|---|
| Cassette | Shimano 105 R7101, 11-34T |
|---|
| Frenos |
|---|
| Frenos | Shimano 105 Di2 R7170, Hydraulic disc SM-RT70 160 mm / 140 mm |
|---|
| Disco delantero | 160 mm / 140 mm |
|---|
| Ruedas |
|---|
| Juego de ruedas | Zipp 303 S Tubeless Disc-brake, 45mm Tubeless ready Carbon rim // Pirelli P Zero Race TLR Classic 622 x 30 Tan Sidewall |
|---|
| Llantas | Zipp 303 S Tubeless Disc-brake, 45mm Tubeless ready Carbon rim |
|---|
| Bujes | Zipp 176 DB bearings, Front axle 12 x 100 mm, Rear axle 12 x 142 mm |
|---|
| Neumáticos | Pirelli P Zero Race TLR Classic 622 x 30 Tan Sidewall |
|---|
| Cockpit |
|---|
| Manillar | Carbon Full Integratted Internal Cable Routing |
|---|
| Puños | Foam |
|---|
| Sillín | Fizik Vento Antares R5 |
|---|
| Tija | Aerodinamic Advanced Carbon Seat Post |
|---|
Geometría
| mm / grados | XS | S | M | L | XL |
|---|
| Stack | 506 | 521 | 534 | 550 | 576 |
|---|
| Reach | 376 | 383 | 384 | 396 | 402 |
|---|
| Tubo sillín | 442 | 460 | 482 | 503 | 535 |
|---|
| Ángulo sillín | 75.5 | 74.5 | 74 | 74 | 73,,5 |
|---|
| Tubo superior | 507 | 527 | 538 | 554 | 572 |
|---|
| Tubo dirección | 102 | 115 | 130 | 145 | 172 |
|---|
| Ángulo dirección | 71.75 | 72.5 | 73 | 73.5 | 73.5 |
|---|
