Las especificaciones pueden variar según talla, disponibilidad de componentes o cambios del fabricante sin previo aviso.
| Motor y batería |
|---|
| Motor | Bosch Performance Line CX38 600Wh |
|---|
| Batería | Bosch PowerTube 600 |
|---|
| Capacidad de batería (Wh) | 600 |
|---|
| Display | Bosch Purion 200 |
|---|
| Cuadro y suspensión |
|---|
| Cuadro | Aluminium E-Bike Specific DT Frame, Full Integratted Battery, Central motor, Hydroformed Technology, Integrated Cable Routing, 12 x 148 BOOST |
|---|

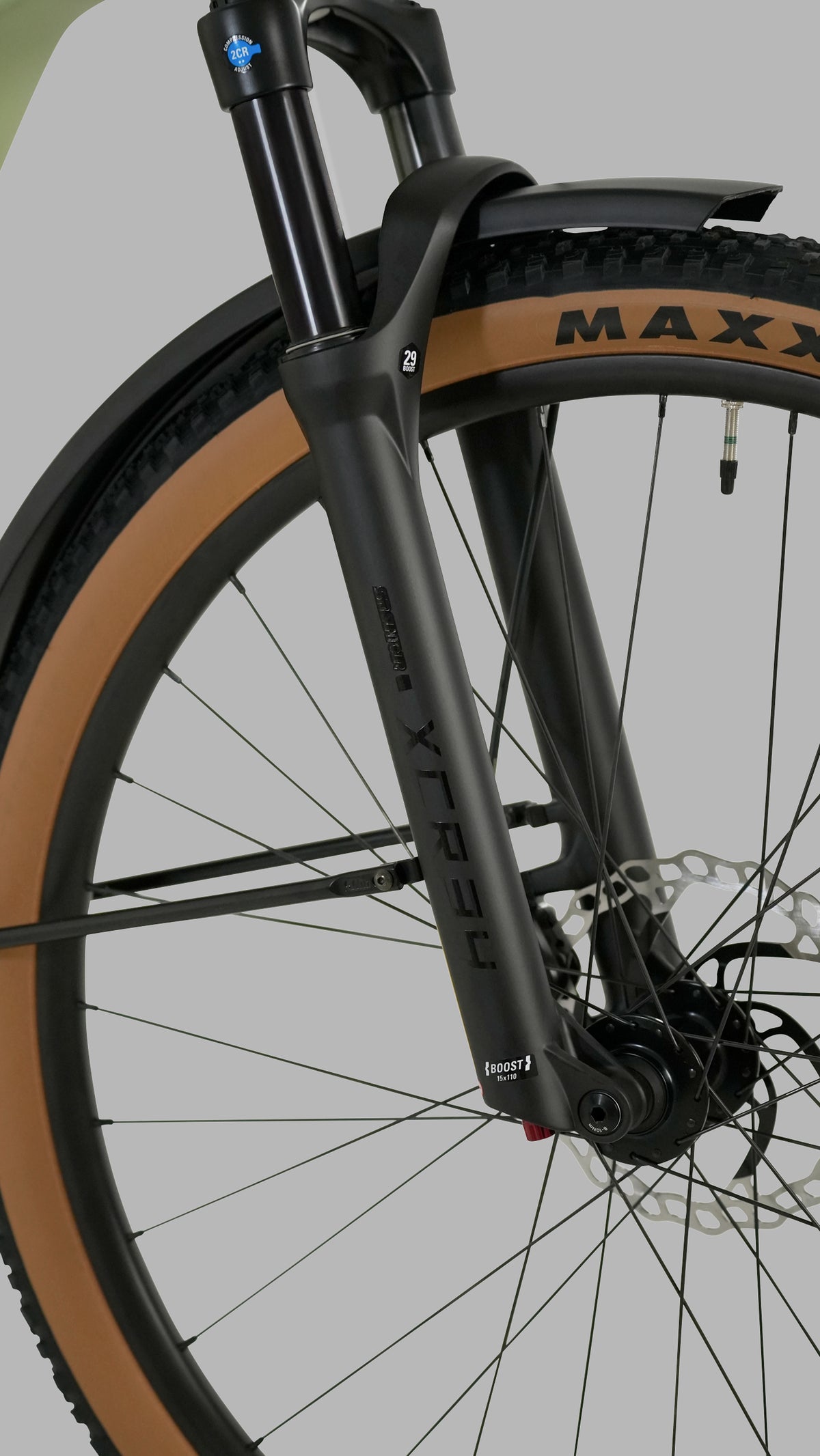

| Horquilla | SUNTOUR XCR 34, COIL, 100mm Travel, 15 x 110 mm BOOST |
|---|
| Recorrido horquilla (mm) | 100 |
|---|
| Transmisión |
|---|
| Cambio trasero | Shimano CUES TD-U6000-GS, ShadowPlus 10-Speed |
|---|
| Mandos | Shimano CUES U6000 Rapidfire Plus 10-Speed |
|---|
| Velocidades | 10 |
|---|

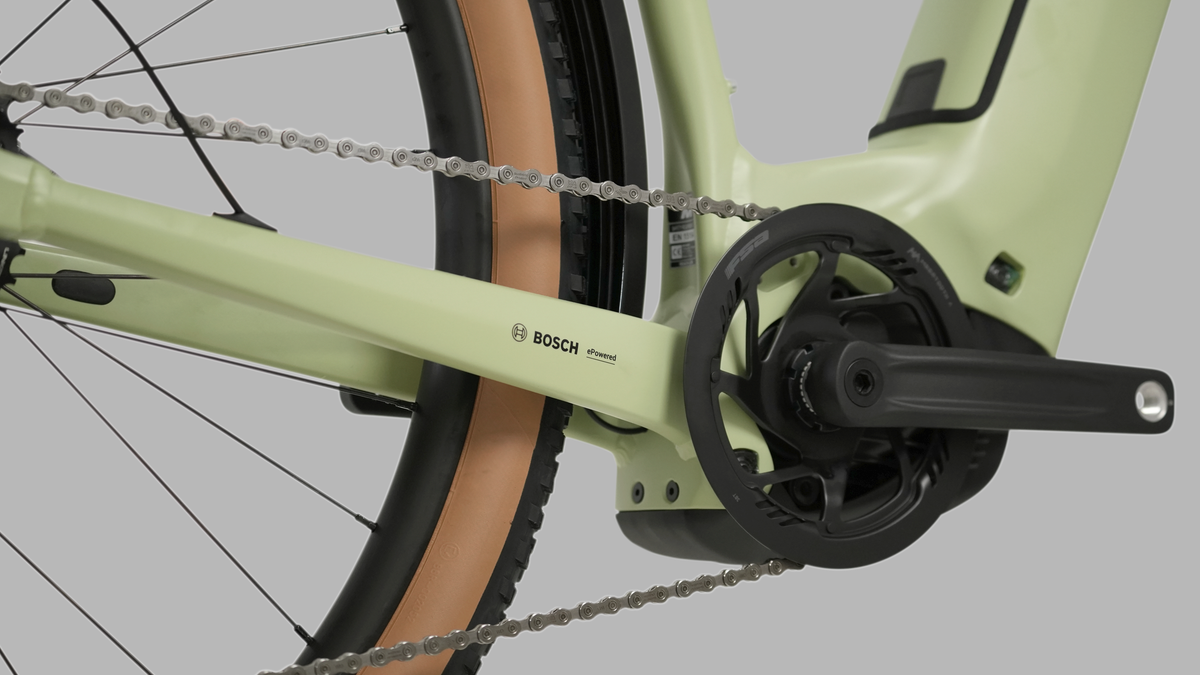

| Bielas y platos | FSA Bosch Direct Mount Chainring & Chainguard 38t CL55 10/11-Speed , Crankset 320 165mm |
|---|
| Cassette | Shimano CUES LG300 11-48T |
|---|
| Frenos |
|---|
| Frenos | Shimano MT200 Hydraulic Disc, 180mm |
|---|
| Disco delantero | 180 mm |
|---|
| Ruedas |
|---|
| Juego de ruedas | Megamo SL 27 ASY - SUV // Maxxis 29 x 2.25 Rekon Race Tanwall |
|---|
| Llantas | Megamo SL 27 ASY - SUV |
|---|
| Bujes | Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+ |
|---|
| Neumáticos | Maxxis 29 x 2.25 Rekon Race Tanwall |
|---|
| Cockpit |
|---|
| Manillar | Satori Wien AL6061, 31,8 x 680 x 20 mm, 15º Back Sweep |
|---|
| Potencia | Satori Rana ICR 31.8, +20º Rise, S size 90 mm / M size 90 mm / L size 110 mm + Satori Rana Accessories for Light Mount |
|---|
| Puños | Megamo |
|---|
| Sillín | Megamo E-Bike Confort+ |
|---|
| Tija | Megamo Alloy |
|---|
| Equipamiento |
|---|
| Luz delantera | Spaninnga AXENDO 80 Front Light + RW09 Front Reflector |
|---|
| Luz trasera | Spaninnga Pimiento Large XE + Spaninnga RR02 Z Type Rear Reflector |
|---|
| Portabultos | Megamo eBike Carrier |
|---|
| Guardabarros | Megamo mudguard |
|---|
Geometría
| mm / grados | S | M | L |
|---|
| Stack | 689 | 689 | 708 |
|---|
| Reach | 407 | 417 | 432 |
|---|
| Tubo sillín | 370 | 430 | 485 |
|---|
| Ángulo sillín | 76 | 76 | 76 |
|---|
| Tubo superior | 605 | 615 | 635 |
|---|
| Tubo dirección | 175 | 175 | 195 |
|---|
| Ángulo dirección | 68 | 68 | 68 |
|---|
| Vainas | 475 | 475 | 475 |
|---|
| Distancia entre ejes | 1184 | 1194 | 1216 |
|---|
